Guide parts

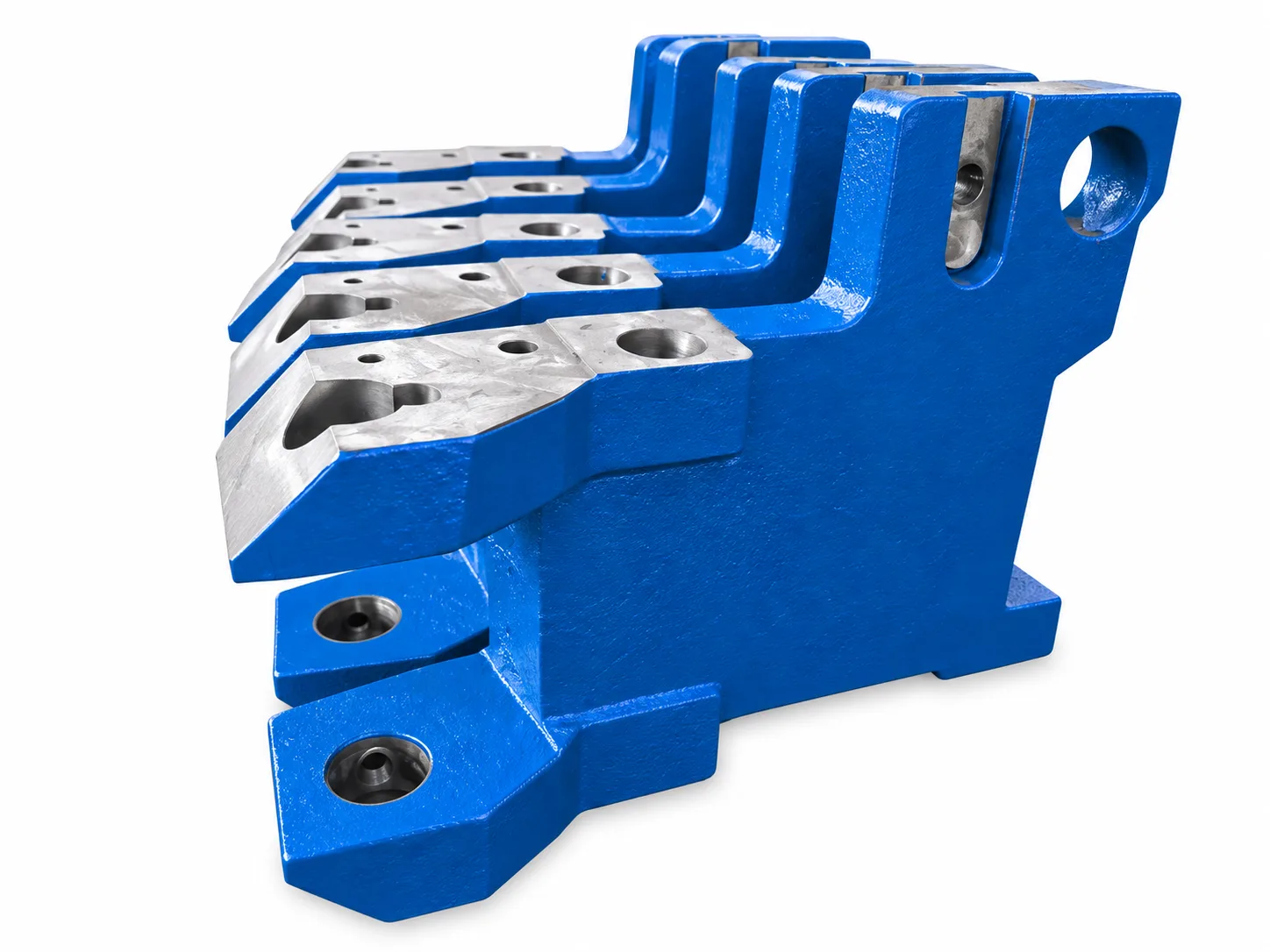

Guide Support Arms
Support arms for guide assemblies. Confirm the original drawing, loading conditions and mounting interfaces.
Prepare inquiryRolling mill guides · Product range
Guide Rollers & Spare Parts
Guide rollers and support arms are checked against the original assembly and its working conditions. A visible part marking helps identification, while dimensions and assembly interfaces determine whether a replacement can be made to suit.
Product photos
3 photos · Select an image for a closer look

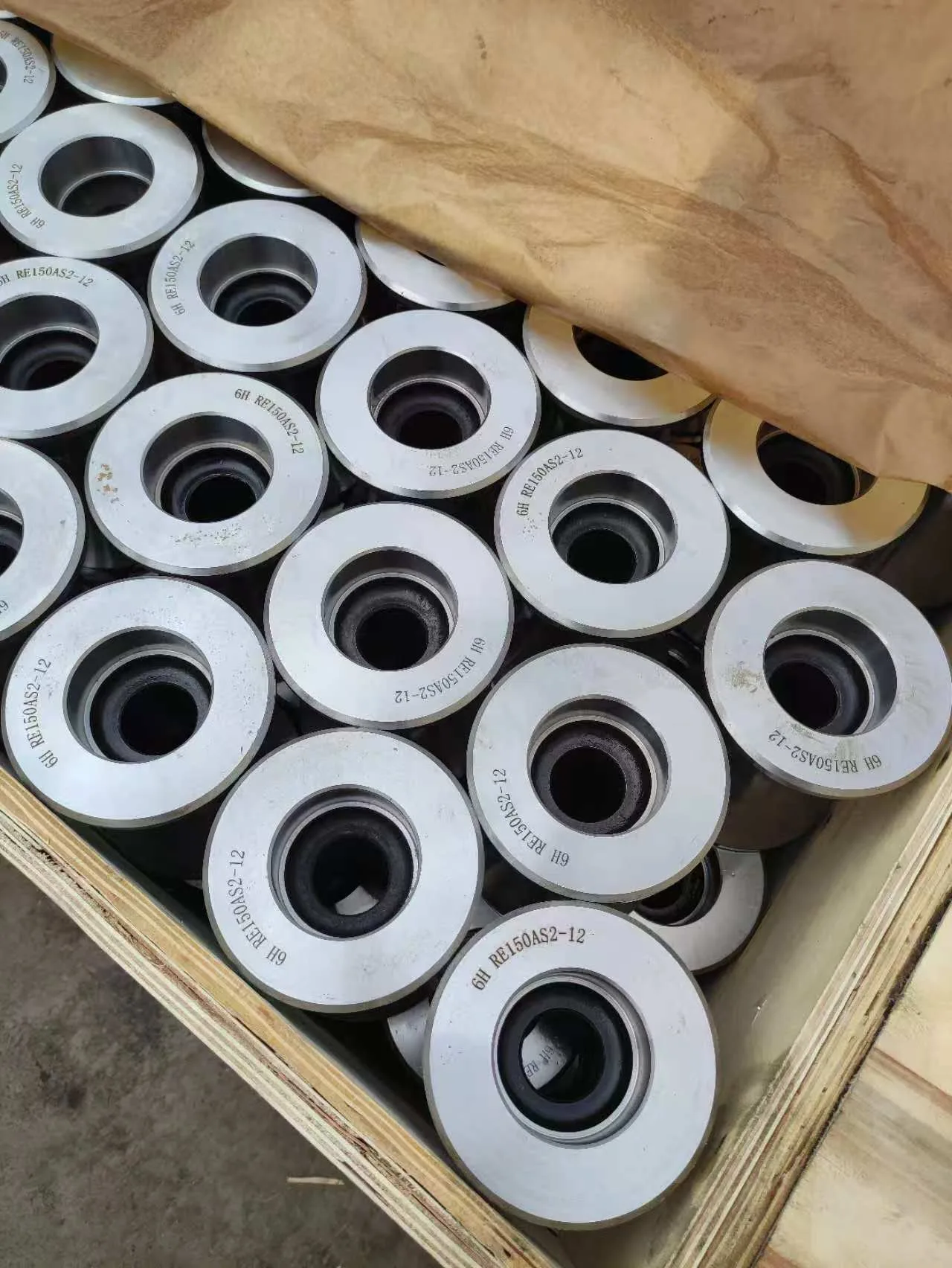

Guide rollers · RE150AS2-12
RE150AS2-12 Guide Rollers
Guide rollers shown in a packing case. Confirm part marking, bore, outside dimensions, bearing arrangement and quantity.
Prepare inquiry

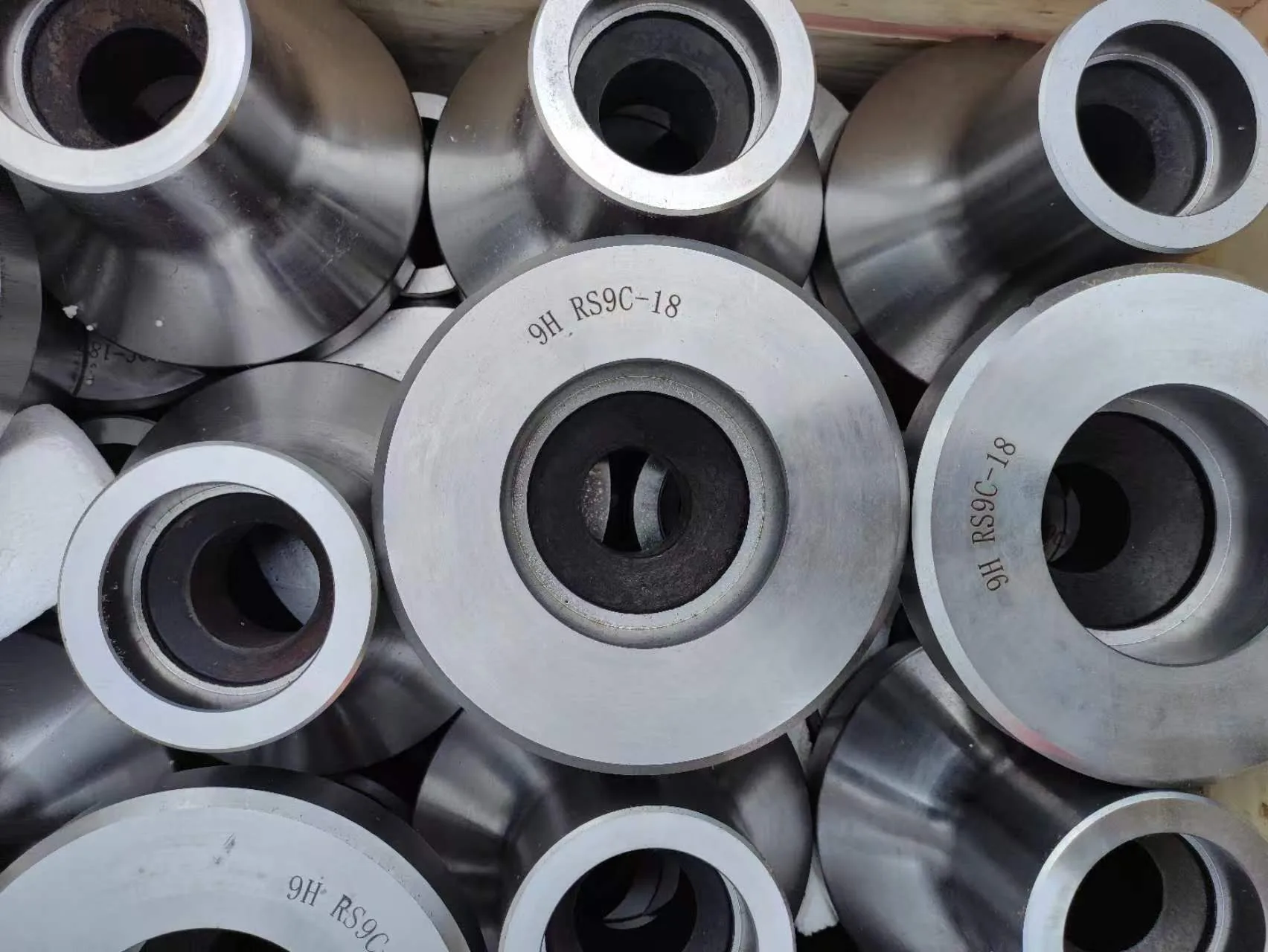

Guide rollers · RS9C-18
RS9C-18 Guide Rollers
Finished guide rollers with model marking visible.
Prepare inquiryMaterial and component selection notes
These are selection checks, not material specifications for the pictured products. Start with the original drawing or specification and the actual working conditions.
- Guide bodies and support arms
- Confirm the original material grade, loading conditions and mounting interfaces.
- Guide rollers and wear surfaces
- Review wear, impact, operating temperature and cooling. Confirm the material grade and heat treatment before manufacture.
- Bearings, shafts and seals
- Check dimensions, fits, bearing arrangement, lubrication and sealing against the original assembly.
- Material and hardness records
- Provide the material grade and standard, heat treatment, hardness value and test scale where available. Do not treat different grades or hardness scales as interchangeable.
Replacement check
Start with the application.
We can check the replacement possibility based on your photos, drawings, part numbers, or working conditions.
Prepare your inquiry →- Position and passStand number, entry or exit location, stock section and pass information.
- Drawing or photosPart number, assembly drawing or clear views of the existing guide.
- Mounting dimensionsBase, bolt pattern, centre height and relevant assembly interfaces.
- Working conditionsCooling, lubrication, current problem and required quantity.
Before inquiry
Common questions about Guide Rollers & Spare Parts
What dimensions are needed to check a guide roller?
Send the part marking or drawing, bore and outside dimensions, bearing arrangement, quantity and assembly interface.
Does a visible part number confirm material and fit?
No. Confirm the original specification, critical dimensions, assembly interface and intended working conditions before replacement.
Contact
Product inquiries
Prepare the product name or photo reference, your drawing or photos, and the required quantity.
